Brass Woven Wire Cloth
Low Brass — 80% Copper + 20% Zinc — 2 Mesh to 100 Mesh

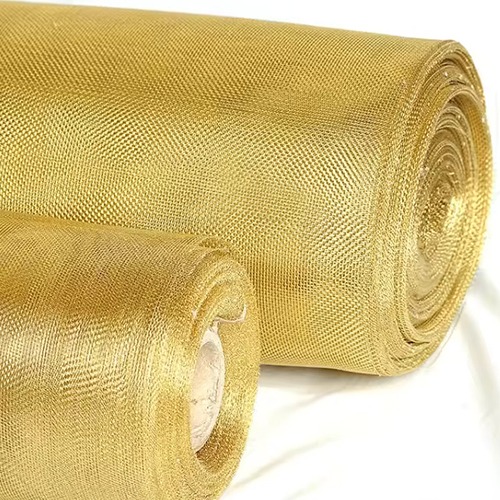

Brass Woven Wire Cloth

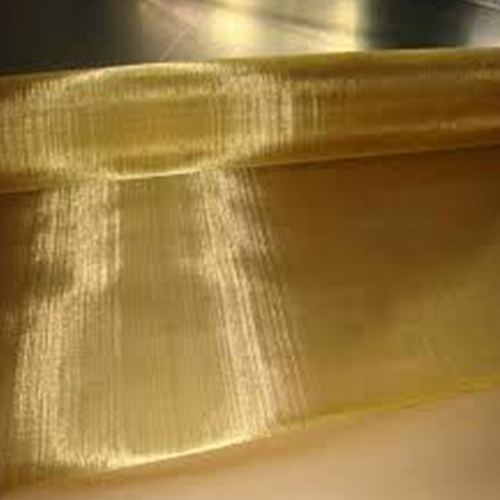

Brass Wire Mesh Close-up
Brass Woven Mesh Stock
Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries.
SNAKE® Brand Brass Woven Wire Cloth — available from stock for prompt delivery.
SNAKE® Brand Brass Woven Wire Cloth — available from stock for prompt delivery.
Brass Woven Wire Cloth is manufactured from Low Brass wire — an alloy of 80% Copper and 20% Zinc. This composition provides excellent corrosion resistance combined with the strength and ductility characteristics that make it ideal for precision filtration and screening applications.
Compared to pure copper, Low Brass offers superior tensile strength while retaining inherent non-sparking and antimicrobial properties. It is widely preferred over bronze in applications where higher zinc content is acceptable, as it delivers comparable corrosion resistance at a more economical price point.
Brass vs Bronze — Key Differences
Low Brass (80% Cu + 20% Zn)
- Higher tensile strength than copper
- Excellent corrosion resistance
- More economical than bronze
- Good formability & ductility
- Non-magnetic, non-sparking
Bronze (Cu + Sn alloy)
- Higher hardness than brass
- Superior marine corrosion resistance
- Better wear resistance
- Higher cost due to tin content
- Preferred for highly acidic media
Material
Low Brass — 80% Cu + 20% Zn
Usage / Applications
Industrial Filtration
Sieving & Screening
Chemical Processing
Petrochemical Industry
Food & Beverage Processing
Pharmaceutical Screening
Water Treatment Plants
Laboratory Sieves
Oil & Gas Filtration
Decorative & Architectural Use
Electromagnetic Shielding
Mining & Quarrying
Standard Specifications
| Meshes Per Linear Inch |
Wire Dia. (Inch) |
Wire Dia. (mm) |
Opening (Inch) |
Opening (mm) |
Kg / Sq Ft | Open Area % |
|---|---|---|---|---|---|---|
| 2 | 0.063 | 1.60 | 0.437 | 11.10 | 0.145 | 76.2 |
| 3 | 0.047 | 1.19 | 0.286 | 7.26 | 0.114 | 73.6 |
| 4 | 0.035 | 0.89 | 0.215 | 5.46 | 0.084 | 73.9 |
| 6 | 0.028 | 0.71 | 0.138 | 3.51 | 0.082 | 68.5 |
| 8 | 0.025 | 0.63 | 0.100 | 2.54 | 0.086 | 64.0 |
| 10 | 0.025 | 0.63 | 0.075 | 1.90 | 0.107 | 56.3 |
| 12 | 0.020 | 0.51 | 0.063 | 1.60 | 0.082 | 57.2 |
| 14 | 0.020 | 0.51 | 0.051 | 1.30 | 0.096 | 51.0 |
| 16 | 0.018 | 0.46 | 0.044 | 1.12 | 0.088 | 49.6 |
| 18 | 0.017 | 0.43 | 0.038 | 0.97 | 0.092 | 47.1 |
| 20 | 0.016 | 0.41 | 0.034 | 0.86 | 0.089 | 46.2 |
| 24 | 0.014 | 0.36 | 0.028 | 0.71 | 0.082 | 44.9 |
| 30 | 0.012 | 0.30 | 0.021 | 0.53 | 0.074 | 40.0 |
| 40 | 0.010 | 0.25 | 0.015 | 0.38 | 0.067 | 36.0 |
| 50 | 0.009 | 0.23 | 0.011 | 0.28 | 0.068 | 30.3 |
| 60 | 0.0075 | 0.19 | 0.009 | 0.23 | 0.059 | 30.6 |
| 80 | 0.0055 | 0.14 | 0.007 | 0.18 | 0.046 | 31.4 |
| 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 0.041 | 36.0 |
Snake® Brand Brass Woven Wire Cloth specifications listed are normally available from stock for prompt delivery. Many other brass specifications can be produced according to requirements, although a substantial minimum order will apply. Contact us for custom sizes and bulk pricing.
