Concertina Coils
Razor Edge PTCC / RBT — Spring Steel Core — Hot-Dipped Galvanized

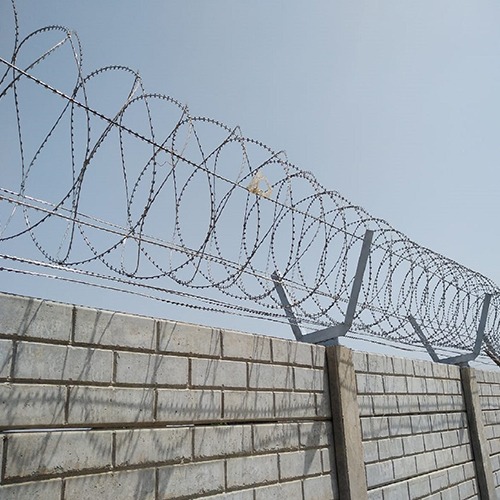

Concertina Coil
Short Barb

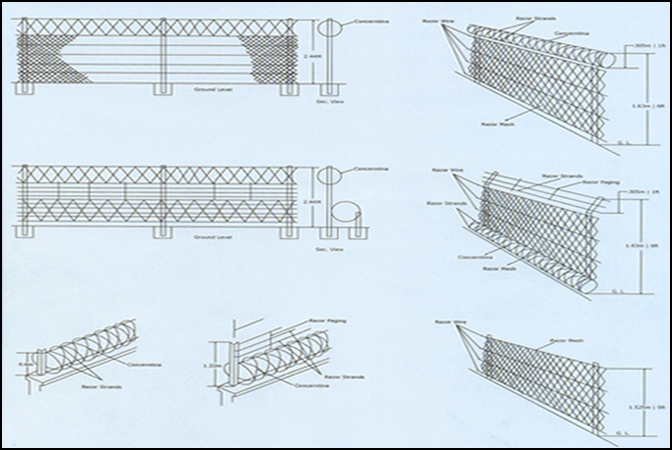

Installation Diagram
160
Barbs per Running Metre
3×
More Than Conventional Barbed Wire
40%
Lighter Than Conventional Wire
33%
Less Length for Same Coverage
Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries that require premium quality metal meshes.
The Razor Edge Concertina Coils or Punched Tape Concertina Wire (PTCC) are spirals consisting of sharp-edged tape crimped to a spring steel core wire, duly galvanized against rusting.
With approximately 160 barbs per running metre — three times that of conventional barbed wire — RBT/PTCC security fencing is highly effective and very difficult to cross over, making it the preferred choice for perimeter security across sensitive installations.
Barb Types Available
Features & Advantages
Features
- Lighter in weight (about 40%) — easy to transport and carry
- Consumes lesser length (about 33%) for the same area of fencing
- Provides perfect and effective obstacles against intrusion
- Sturdy in construction, easier and economical in installation
Advantages
- Acts as an instant barrier
- Sharp barbed points act as a strong deterrent
- Wide area can be cordoned off in very short time
- More effective and economical than conventional barbed wire
Installation Guide
- With PTCC rolls it is possible to erect protective barriers quickly, easily and exactly, keeping with actual fencing requirements of houses, residential complexes, VVIP areas, etc.
- Ditches, walls and fences can be reinforced with barbed wire crests in a variety of ways. A small diameter is particularly suitable on account of its greater rigidity.
- When used entirely on their own they make highly effective barrier installations.
- Multiple barriers of concertina wire coils are particularly effective.
- Quick to install as a twin barrier (comprising one roll inside another).
Standard Specifications
| S.No. | Coil Dia (mm) | No. of Loops | Weight (Kg) | Coverage Length |
|---|---|---|---|---|
| 1 | 1050 | 51 | 15.20 | 10 – 15 m |
| 2 | 750 | 51 | 10.75 | 8 – 10 m |
| 3 | 610 | 51 | 8.75 | 5 – 7 m |
| 4 | 610 | 72 | 12.50 | 10 – 18 m |
| 5 | 450 | 45 | 5.70 | 4 – 5 m |
Custom specifications and barb types (Short, Medium, Long, Scrapper) available on request. Contact us for bulk orders and competitive pricing.
