Expanded Metal Mesh
Diamond-shaped openings — MS / GI / SS / Aluminium / Special Alloys

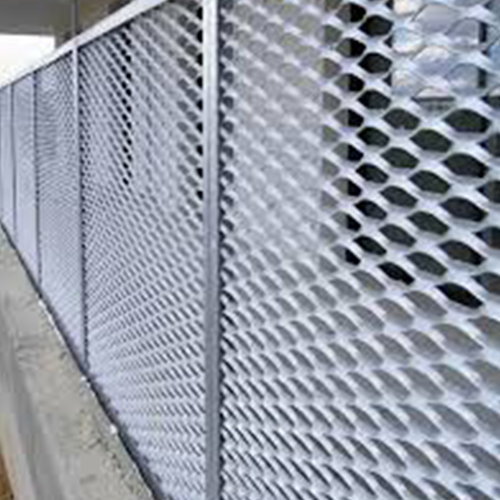

Expanded Metal Mesh

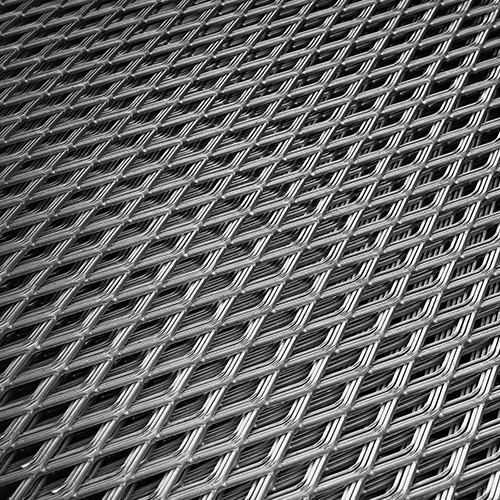

Expanded Metal Production
Our in-house brand, trusted since the 1960s for supreme quality and reliability in various industries.
We have been producing and supplying Expanded Metal Mesh for over 25 years under the trusted SNAKE® Brand.
Manufactured using advanced punching, stretching & flattening machines for perfect diamond-shaped openings. Opening Size: 0.5 mm to 50 mm | Any sheet size & thickness available.
Available Materials
Mild Steel (MS)
Galvanized Iron (GI)
Stainless Steel — 304 / 316
Aluminium
Special Alloys
Usage / Applications
Machine & Equipment Protection
Window Guards
Aquatic Product Breeding
Filtration Applications
Concrete Reinforcement
Speaker Grilles
Arts & Crafts
Partitioning & Security Covers
Road & Railway Fencing
Civil & Water Conservancy
Step Mesh — Oil Tanks
Working Platforms & Walkways
Boiler & Mine Wells
Vehicles & Ships
Highway & Bridge Reinforcement
Technical Terms
Style Dimension / SWD
Nominal dimension — Short Way of Design (SWD)
Design Size
Actual dimension — SWD and LWD measured point to corresponding point
SWO & LWO
Short Way of Opening and Long Way of Opening
Strands
The sides of the expanded metal design
Strand Thickness
Thickness / Gauge of the metal expanded
Strand Width
Amount of metal fed under dies to produce one strand
Standard Specifications
| Strand & Opening Dimensions | Sheet Details | |||||
|---|---|---|---|---|---|---|
| Strand Thickness (mm) | Distance Short (mm) | Distance Long (mm) | Strand Width (mm) | Width (Mt) | Length (Mt) | Weight (Kg/M²) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.0 | 1.80 |
| 0.5 | 10.0 | 25.0 | 0.5 | 0.6 | 2.0 | 0.73 |
| 0.6 | 10.0 | 25.0 | 1.0 | 0.6 | 2.0 | 1.00 |
| 0.8 | 10.0 | 25.0 | 1.0 | 0.6 | 2.0 | 1.25 |
| 1.0 | 10.0 | 25.0 | 1.1 | 0.6 | 2.0 | 1.77 |
| 1.0 | 15.0 | 40.0 | 1.5 | 2.0 | 4.0 | 1.85 |
| 1.2 | 10.0 | 25.0 | 1.1 | 2.0 | 4.0 | 2.21 |
| 1.2 | 15.0 | 40.0 | 1.5 | 2.0 | 4.0 | 2.30 |
| 1.5 | 15.0 | 40.0 | 1.5 | 1.8 | 4.0 | 2.77 |
| 1.5 | 23.0 | 60.0 | 2.6 | 2.0 | 3.6 | 2.77 |
| 2.0 | 18.0 | 50.0 | 2.1 | 2.0 | 4.0 | 3.69 |
| 2.0 | 22.0 | 60.0 | 2.6 | 2.0 | 4.0 | 3.69 |
| 3.0 | 40.0 | 80.0 | 3.8 | 2.0 | 4.0 | 5.00 |
| 4.0 | 50.0 | 100.0 | 4.0 | 2.0 | 2.0 | 11.15 |
| 4.0 | 60.0 | 120.0 | 4.0 | 2.0 | 7.5 | 4.00 |
| 4.0 | 80.0 | 180.0 | 4.0 | 2.0 | 10.0 | 3.00 |
| 4.0 | 100.0 | 200.0 | 4.0 | 2.0 | 12.0 | 2.50 |
| 4.5 | 50.0 | 100.0 | 5.0 | 2.0 | 2.7 | 11.15 |
| 5.0 | 50.0 | 100.0 | 5.0 | 1.4 | 2.6 | 12.39 |
| 5.0 | 75.0 | 150.0 | 5.0 | 2.0 | 10.0 | 3.00 |
| 6.0 | 50.0 | 100.0 | 6.0 | 2.0 | 2.5 | 17.35 |
| 8.0 | 50.0 | 100.0 | 8.0 | 2.0 | 2.1 | 28.26 |
Custom sizes and specifications available on request.
Contact us for bulk orders and competitive pricing.
