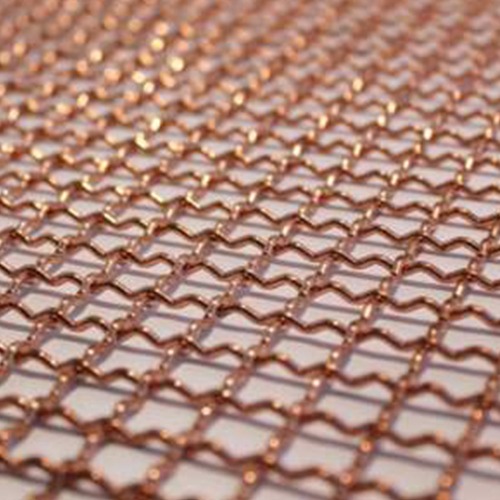

Copper Woven Wire Cloth
SNAKE® Brand — 2 Mesh to 145 Mesh — Available from Stock

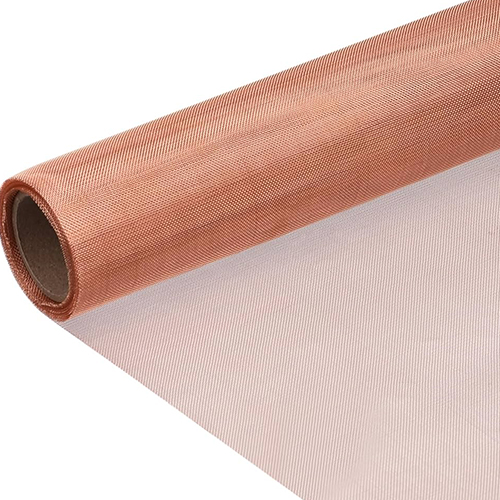

Copper Wire Cloth
Copper Mesh Detail

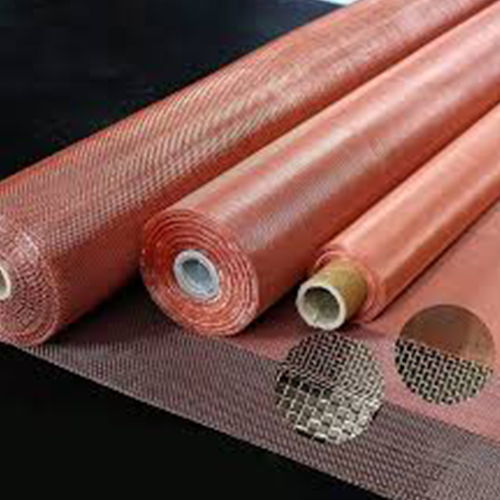

Woven Copper Cloth
SNAKE® Brand — Copper Woven Wire Cloth
Our in-house brand trusted since the 1960s for supreme quality and reliability in premium copper wire mesh across industries. Available from stock for prompt delivery.
SNAKE® Brand
Copper is the material of choice for Decorative Cabinet Door Grills, Lamp Shades, Display Panels, Bio-Circuits, Metal Sculptures and Artistic Projects.
Copper has excellent electrical and thermal conductivity. It is non-magnetic, non-sparking and resists atmospheric corrosion better than brass. Copper is ductile and malleable, but not as strong as brass.
Material Properties
Electrical & Thermal Conductivity
Excellent electrical and thermal conductivity — ideal for shielding, grounding and heat-dissipation applications.
Corrosion Resistance
Non-magnetic, non-sparking and resists atmospheric corrosion better than brass — suitable for outdoor and chemical environments.
Ductile & Malleable
Easily formed and shaped for decorative, artistic and architectural applications without cracking or breaking.
Antimicrobial
Copper has natural antimicrobial properties, making it suitable for food-contact and healthcare-adjacent applications.
Key Applications
EMI / RFI Shielding Screens
Grounding Grids & Lightning Arrestors
Bio-Circuits & Eeman Relaxation Circuits
Decorative & Architectural Mesh
Cabinet Door Grills
Lamp Shades & Display Panels
Metal Sculptures
Artistic & Sculptural Projects
Mesh Specifications
SNAKE® Brand Copper Woven Wire Cloth specifications listed below are normally available from stock for prompt delivery. Many other copper specifications can be produced according to requirements, although a substantial minimum order will apply.
| Mesh per Inch | Wire Dia.(Inch) | Wire Dia.(mm) | Opening(Inch) | Opening(mm) | Kg/Sq Ft | Open Area % |
|---|---|---|---|---|---|---|
| 2 Mesh | 0.0630 | 1.600 | 0.4370 | 11.100 | 0.263 | 76.4% |
| 4 Mesh | 0.0470 | 1.190 | 0.2030 | 5.160 | 0.256 | 65.9% |
| 4 Mesh | 0.0630 | 1.600 | 0.1870 | 4.750 | 0.463 | 55.9% |
| 8 Mesh | 0.0280 | 0.710 | 0.0970 | 2.460 | 0.211 | 60.2% |
| 10 Mesh | 0.0250 | 0.640 | 0.0750 | 1.910 | 0.212 | 56.3% |
| 12 Mesh | 0.0230 | 0.584 | 0.0600 | 1.520 | 0.217 | 52.4% |
| 14 Mesh | 0.0200 | 0.508 | 0.0510 | 1.300 | 0.191 | 51.8% |
| 16 Mesh | 0.0110 | 0.279 | 0.0515 | 1.300 | 0.065 | 67.9% |
| 16 Mesh | 0.0180 | 0.457 | 0.0445 | 1.130 | 0.177 | 50.7% |
| 18 Mesh | 0.0170 | 0.432 | 0.0386 | 0.980 | 0.179 | 48.2% |
| 20 Mesh | 0.0160 | 0.406 | 0.0340 | 0.860 | 0.177 | 46.2% |
| 24 Mesh | 0.0140 | 0.356 | 0.0277 | 0.700 | 0.163 | 44.1% |
| 30 Mesh | 0.0130 | 0.330 | 0.0203 | 0.520 | 0.193 | 37.2% |
| 40 Mesh | 0.0100 | 0.254 | 0.0150 | 0.380 | 0.142 | 36.0% |
| 50 Mesh | 0.0090 | 0.229 | 0.0110 | 0.280 | 0.146 | 30.3% |
| 60 Mesh | 0.0075 | 0.191 | 0.0092 | 0.230 | 0.122 | 30.2% |
| 80 Mesh | 0.0055 | 0.140 | 0.0070 | 0.180 | 0.087 | 31.4% |
| 100 Mesh | 0.0045 | 0.114 | 0.0055 | 0.140 | 0.073 | 30.3% |
| 100 Mesh | 0.0022 | 0.055 | 0.0078 | 0.198 | 0.024 | 60.8% |
| 145 Mesh | 0.0022 | 0.055 | 0.0047 | 0.119 | 0.030 | 46.4% |
Our in-house brand SNAKE®, trusted since the 1960s for supreme quality and reliability in premium copper wire mesh across industries. Custom copper specifications can be produced according to requirements.
Many other copper specifications can be produced according to requirements, although a substantial minimum order will apply.
Contact us for bulk orders and competitive pricing.
